Spur gear motor
图文
详情

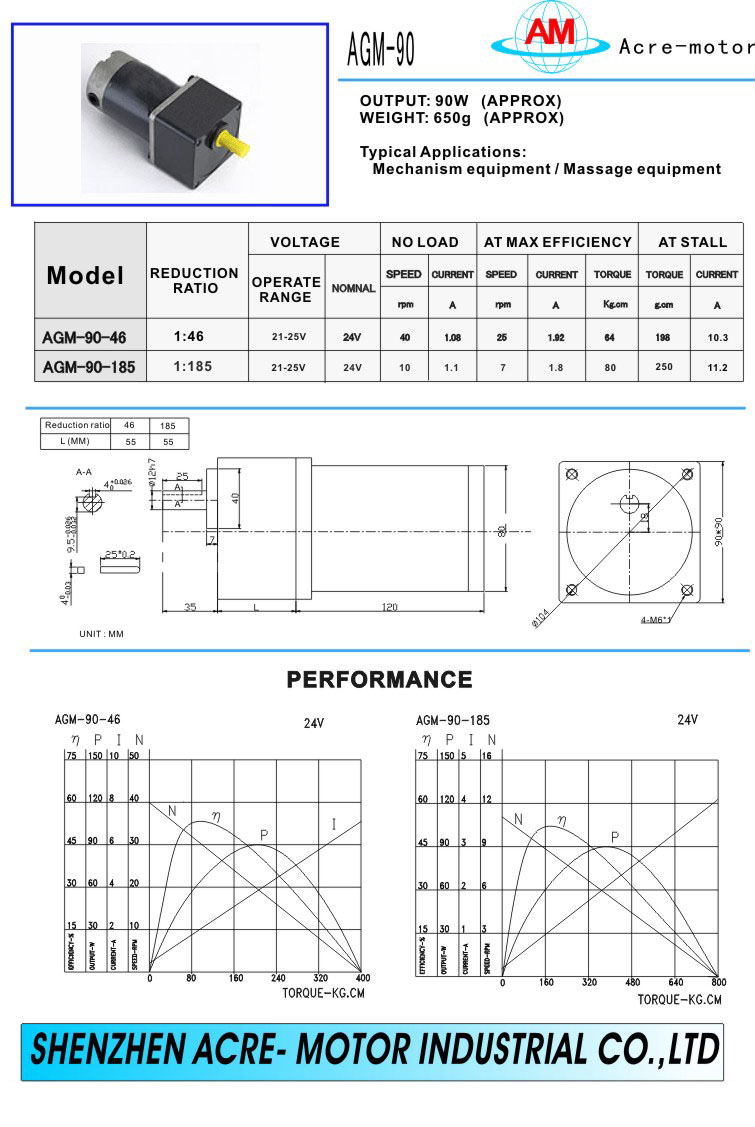

Spur gear motor AGM-90


 Performance:



  • Spur-gear motor

  • Model : AGM-90

  • Output : 90W(Approx)

  • Weight : 650g (Approx)

  • Typical applications:

    • Massage equipment

    • Mechanism equipment

       Nominal  Voltage: 24VDC

       Reduction ratio: 1:46, 1:185

  • No load:

    • Speed: 40rpm,10rpm

    • Current: 1.08A, 1.1A

  • At maximum efficiency:

    • Speed: 25rpm,7rpm

    • Current: 1.92A, 1.8A

    • Torque: 64000gcm/6275mNm, 80000gcm/7843mNm

  • At stall:

    • Torque: 198000gcm/19412mNm ,250000gcm/24510mNm

Current : 10.3A, 11.2A



prev : 直齿轮电机 AGM-80
Spur gear motor AGM-90
