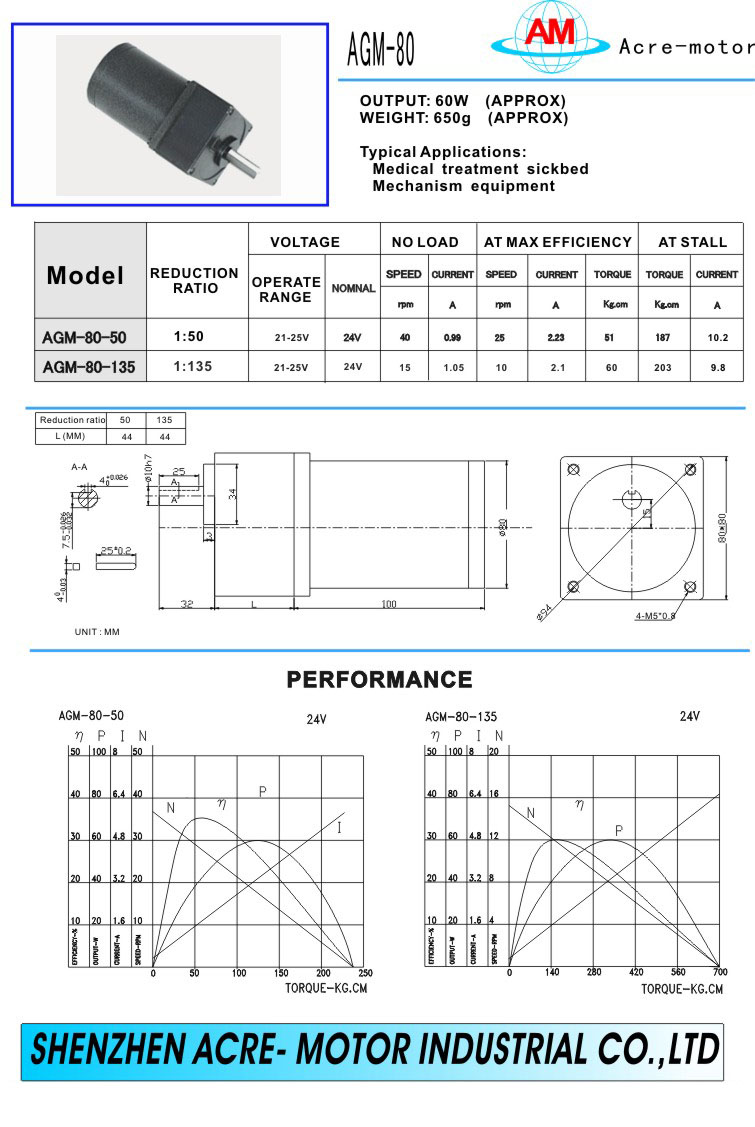

Spur gear motor AGM-80


Performance:



  • Spur-gear motor

  • Model : AGM-80

  • Output : 60W(Approx)

  • Weight : 650g (Approx)

  • Typical applications:

    • Medical treatment sickbed

    • Mechanism equipment

       Nominal  Voltage: 24VDC

       Reduction ratio: 1:50, 1:135

  • No load:

    • Speed: 40rpm,15rpm

    • Current: 0.99A, 1.05A

  • At maximum efficiency:

    • Speed: 25rpm,10rpm

    • Current: 2.23A, 2.1A

    • Torque: 51000gcm/5000mNm, 60000gcm/5882mNm

  • At stall:

    • Torque: 187000gcm/18333mNm ,203000gcm/19901mNm

Current : 10.2A, 9.8A



prev : 直齿轮电机 AGM-70 next : 直齿轮电机 AGM-90
