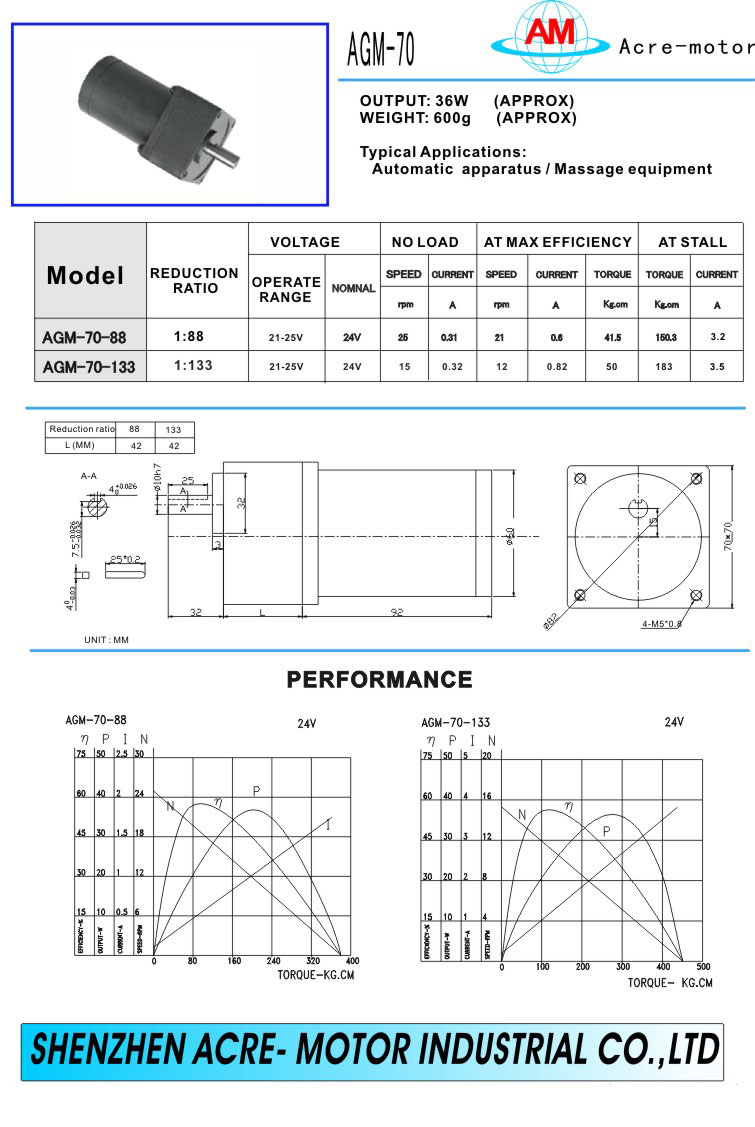

Spur gear motor AGM-70


Performance:



  • Spur-gear motor

  • Model : AGM-70

  • Output : 36W(Approx)

  • Weight : 600g (Approx)

  • Typical applications:

    • Automatic apparatus

    • Masage equipment

       Nominal  Voltage: 24VDC

       Reduction ratio: 1:88, 1:133

  • No load:

    • Speed: 25rpm,15rpm

    • Current: 0.31A, 0.32A

  • At maximum efficiency:

    • Speed: 21rpm,12rpm

    • Current: 0.6A, 0.82A

    • Torque: 41500gcm/4068.6mNm, 50000gcm/4902mNm

  • At stall:

    • Torque: 150300gcm/14735mNm ,183000gcm/17941mNm

Current : 3.2A, 3.5A



prev : 直齿轮电机 AGM-60 next : 直齿轮电机 AGM-80
Spur gear motor AGM-70
