Spur gear motor
图文
详情

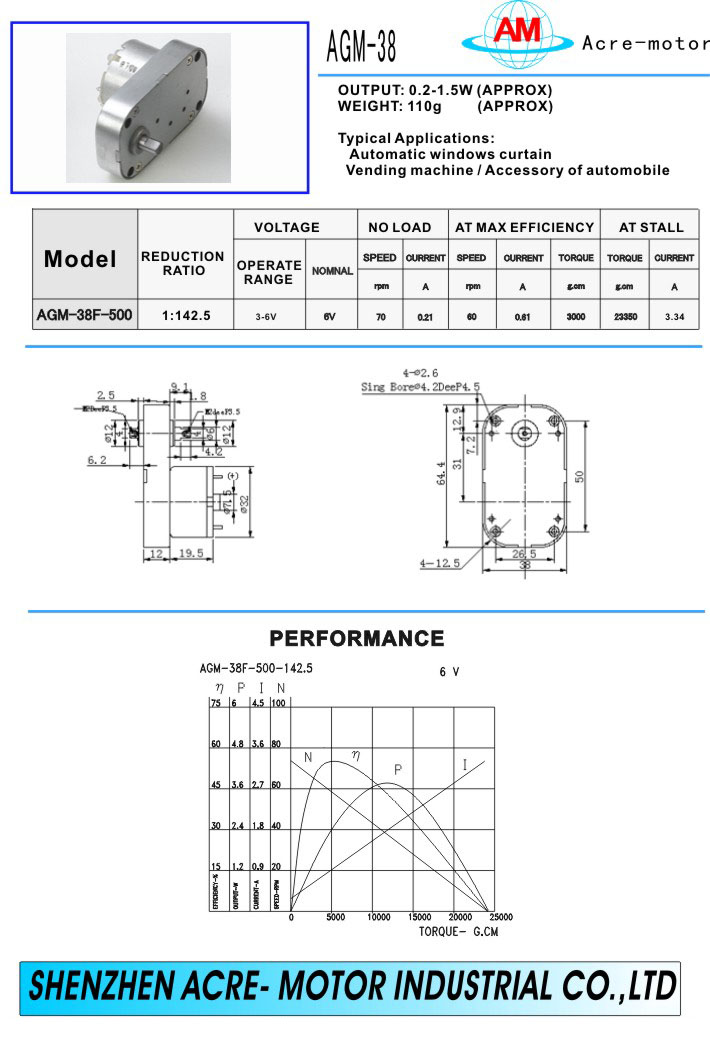

Spur gear motor AGM-38


 Performance:



  • Spur-gear motor

  • Model : AGM-38

  • Output : 0.2-1.5W(Approx)

  • Weight : 110g (Approx)

  • Typical applications:

    • Automatic windows curtain

    • Vending machine

    • Accesories of automobile

       Nominal  Voltage: 6VDC

       Reduction ratio: 1:142.5

  • No load:

    • Speed: 70rpm

    • Current: 0.21A

  • At maximum efficiency:

    • Speed: 60rpm

    • Current: 0.61A

    • Torque: 5000gcm/490mNm

  • At stall:

    • Torque: 23350gcm/2289mNm

Current : 3.34A



prev : 直齿轮电机 AGM-37 next : 直齿轮电机 AGM-42
