Spur gear motor
图文
详情

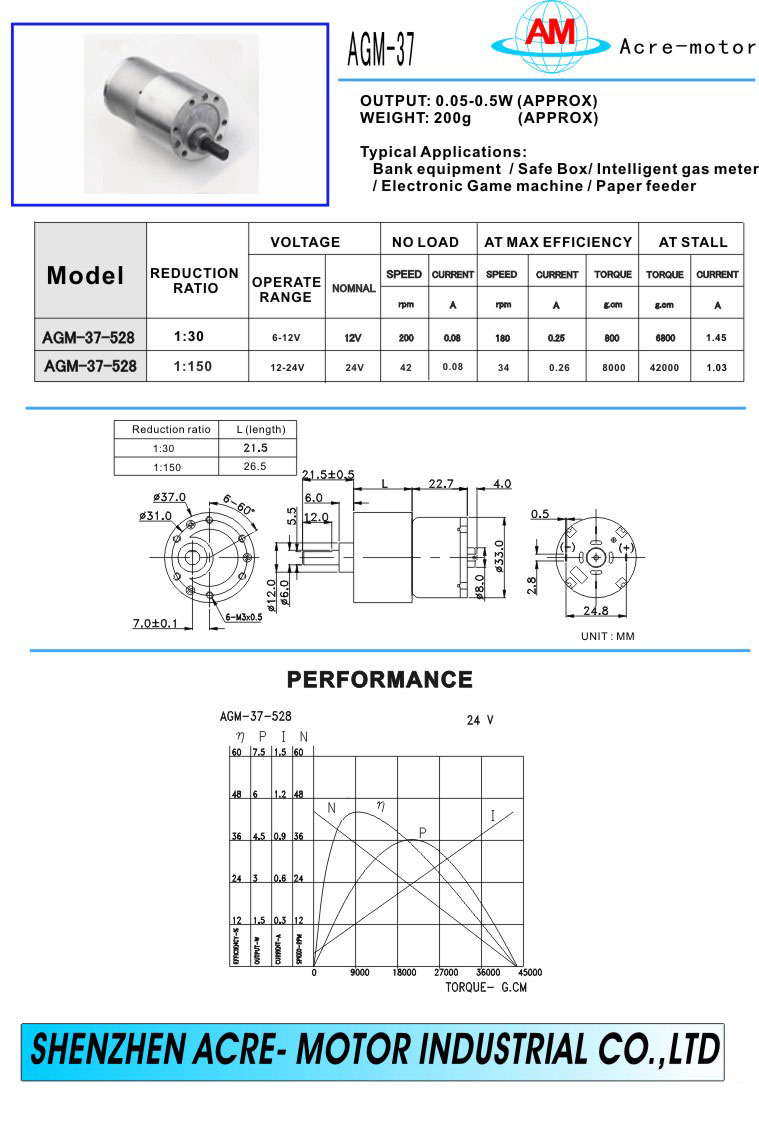

Spur gear motor AGM-37


 Performance:



  • Spur-gear motor

  • Model : AGM-37

  • Output : 0.05-0.5W(Approx)

  • Weight : 200g (Approx)

  • Typical applications:

    • Bank equipment

    • Safe box

    • Paper feeder

    • Electronic game machine

    • Intelligent gas meter

       Nominal  Voltage: 12VDC, 24VDC

       Reduction ratio: 1:30, 1:150

  • No load:

    • Speed: 200rpm,42rpm

    • Current: 0.08A, 0.08A

  • At maximum efficiency:

    • Speed: 180rpm,34rpm

    • Current: 0.25A, 0.26A

    • Torque: 800gcm/78mNm, 8000gcm/784mNm

  • At stall:

    • Torque: 680gcm/66mNm ,42000gcm/4118mNm

Current : 1.45A, 1.03A



prev : 直齿轮电机 AGM-32 next : 直齿轮电机 AGM-38
Spur gear motor AGM-37
