Spur gear motor
图文
详情

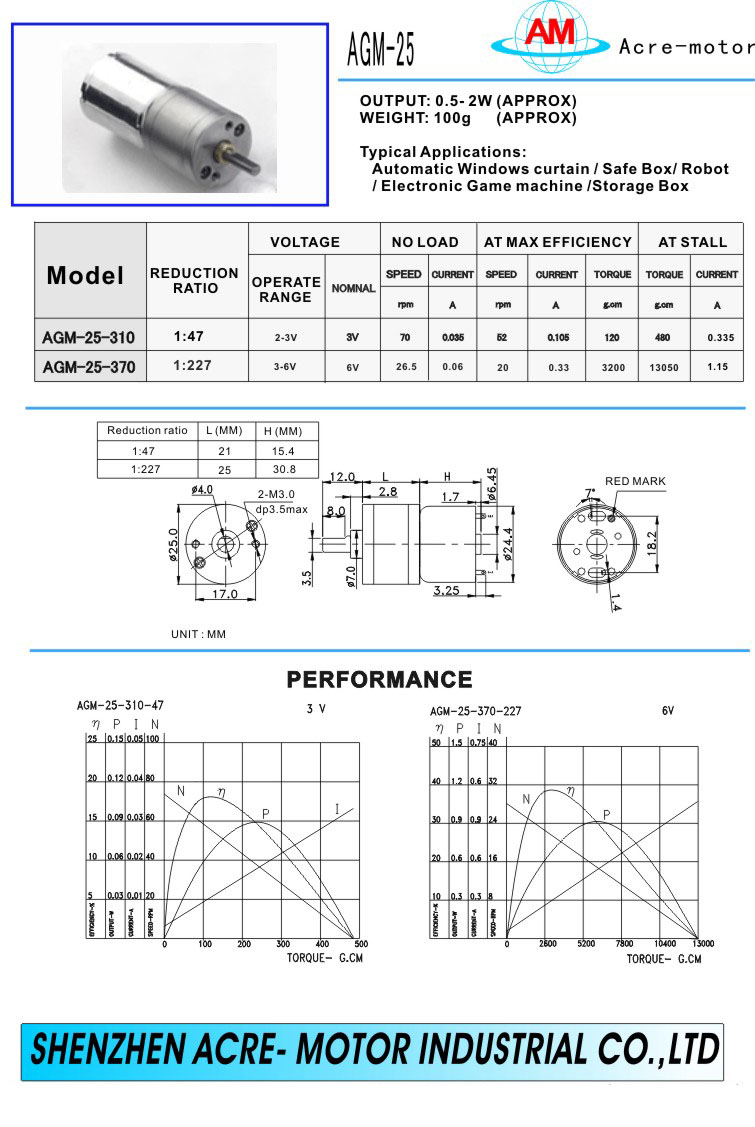

Spur gear motor AGM-25


Performance:



  • Spur-gear motor

  • Model : AGM-25

  • Output : 0.5-2W(Approx)

  • Weight : 100g (Approx)

  • Typical applications:

    • Automatic windows curtain

    • Safe box

    • Robot

    • Electronic game machine

    • Storage box

       Nominal  Voltage: 3VDC, 6VDC

       Reduction ratio: 1:47, 1:227

  • No load:

    • Speed: 70rpm,26.5rpm

    • Current: 0.035A, 0.06A

  • At maximum efficiency:

    • Speed: 52rpm,20rpm

    • Current: 0.105A, 0.33A

    • Torque: 120gcm/11.8mNm, 3200gcm/313.7mNm

  • At stall:

    • Torque: 480gcm/47mNm ,13050gcm/1280mNm

Current : 0.335A, 1.15A



prev : 直齿轮电机 AGM-24 next : 直齿轮电机 AGM-32
