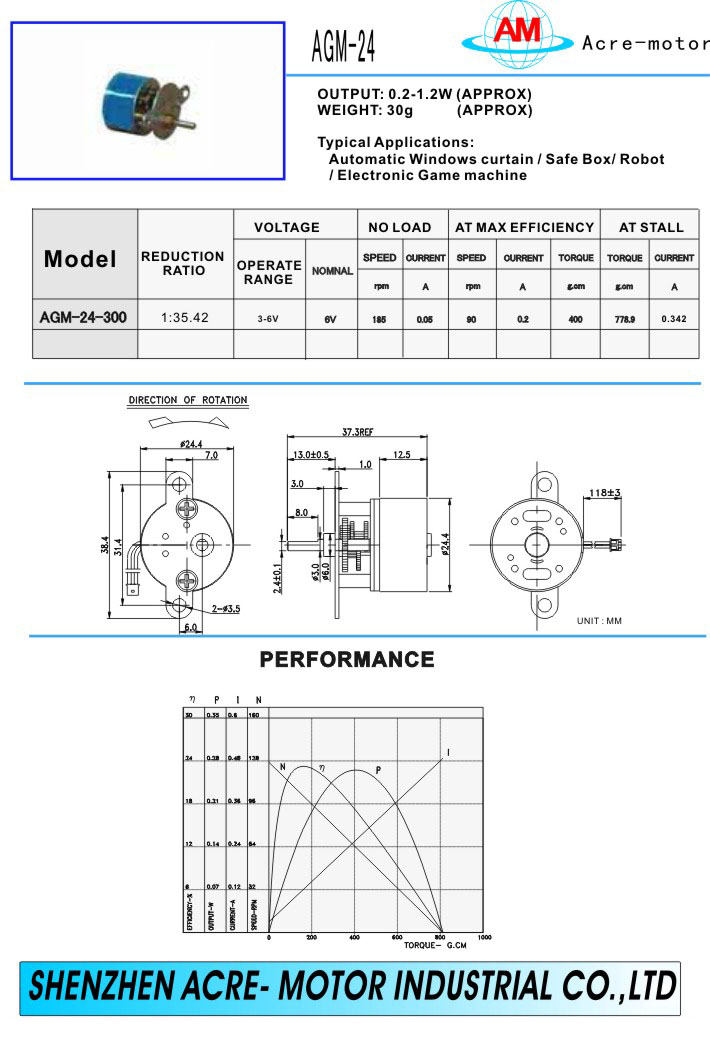

Spur gear motor AGM-24


Performance:



  • Spur-gear motor

  • Model : AGM-24

  • Output : 0.2-1.2W(Approx)

  • Weight : 30g (Approx)

  • Typical applications:

    • Automatic windows curtain

    • Safe box

    • Robot

    • Electronic game machine

       Nominal  Voltage: 6VDC

       Reduction ratio: 1:35.42

  • No load:

    • Speed: 185rpm

    • Current: 0.05A

  • At maximum efficiency:

    • Speed: 90rpm

    • Current: 0.2A

    • Torque: 400gcm/39mNm

  • At stall:

    • Torque: 778gcm/76mNm

Current : 0.342A
