Spur gear motor
图文
详情

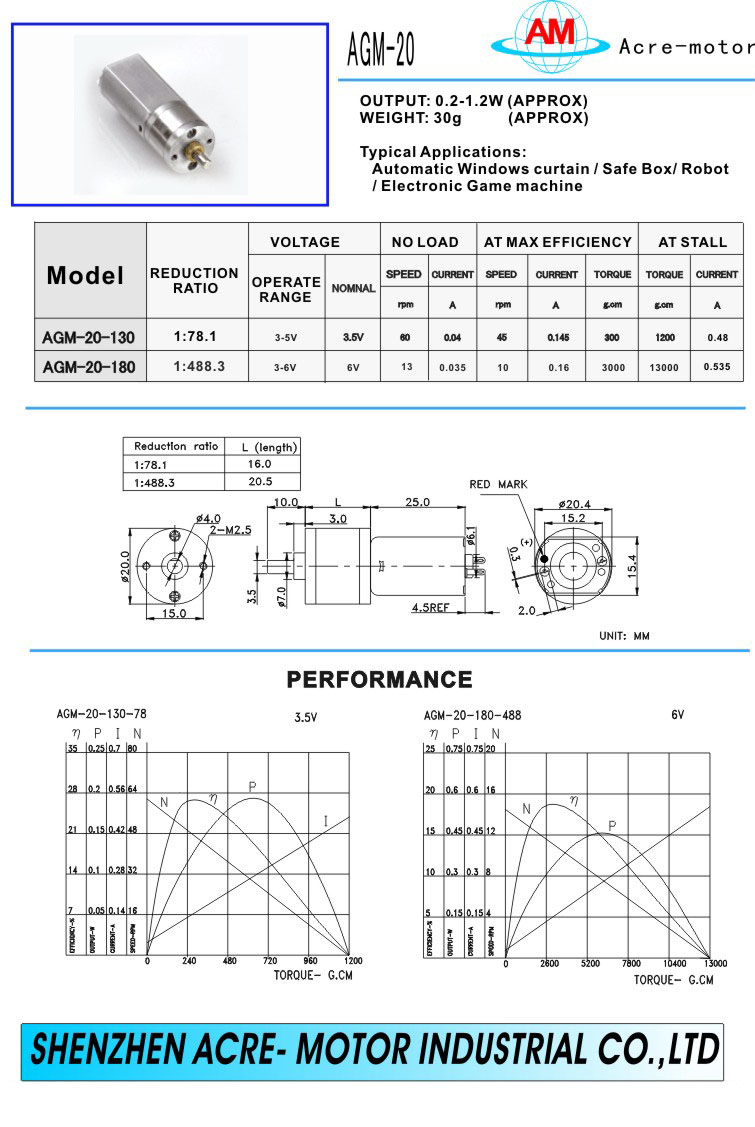

Spur gear motor AGM-20


Performance:



  • Spur-gear motor

  • Model : AGM-20

  • Output : 0.2-1.2W(Approx)

  • Weight : 30g (Approx)

  • Typical applications:

    • Automatic windows curtain

    • Safe box

    • Robot

    • Electronic game machine

       Nominal  Voltage: 3.5VDC, 6VDC

       Reduction ratio: 1:78.1, 1:488.3

  • No load:

    • Speed: 60rpm,13rpm

    • Current: 0.04A, 0.035A

  • At maximum efficiency:

    • Speed: 45rpm,10rpm

    • Current: 0.145A, 0.16A

    • Torque: 300gcm/29.4mNm, 3000gcm/294mNm

  • At stall:

    • Torque: 1200gcm/117.6mNm ,13000gcm/1274.5mNm

    • Current : 0.48A, 0.535A





prev : 直齿轮电机 AGM-16 next : 直齿轮电机 AGM-24
