Spur gear motor
图文
详情

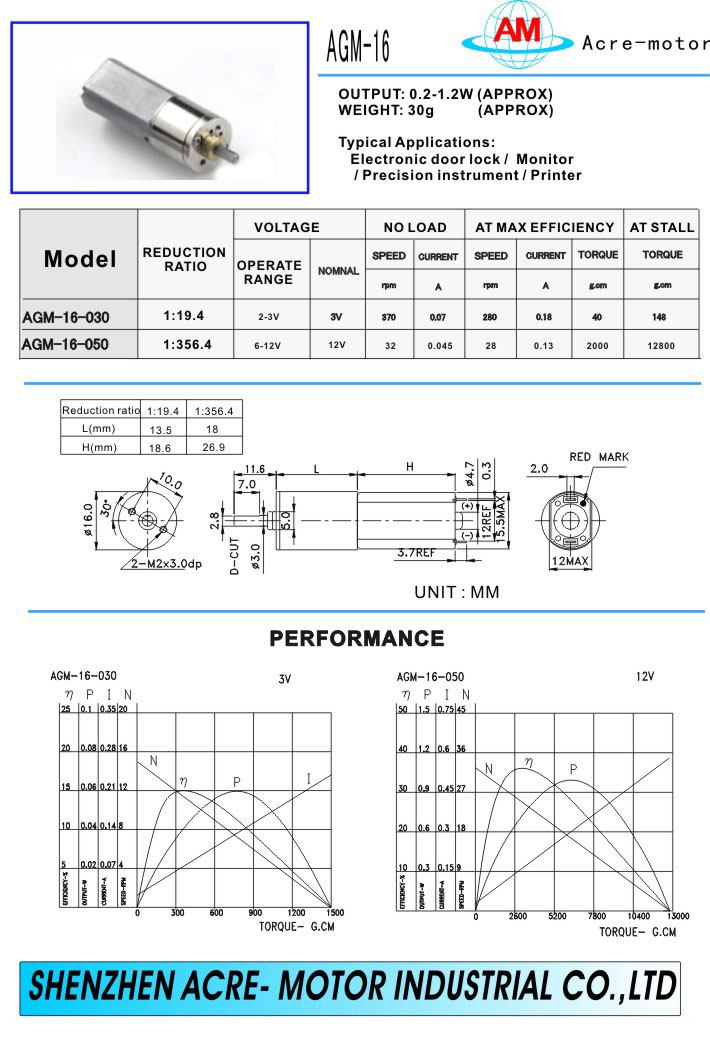

Spur gear motor AGM-16


Performance:





  • Spur-gear motor

  • Model : AGM-16

  • Output : 0.2-1.2W(Approx)

  • Weight : 30g (Approx)

  • Typical applications:

    • Electronic door lock

    • Monitor

    • Precision instrument

    • Printer

       Nominal  Voltage: 3VDC,12VDC

       Reduction ratio: 1:19.4,1:356.4

  • No load:

    • Speed: 370rpm,32rpm

    • Current: 0.07A, 0.045A

  • At maximum efficiency:

    • Speed: 280rpm,28rpm

    • Current: 0.18A, 0.13A

    • Torque: 40gcm/3.9mNm, 2000gcm/196mNm

  • At stall:

Torque: 148gcm/14.5mNm ,12800gcm/1255mNm



prev : 直齿轮电机 AGM-12 next : 直齿轮电机 AGM-20
