Spur gear motor
图文
详情

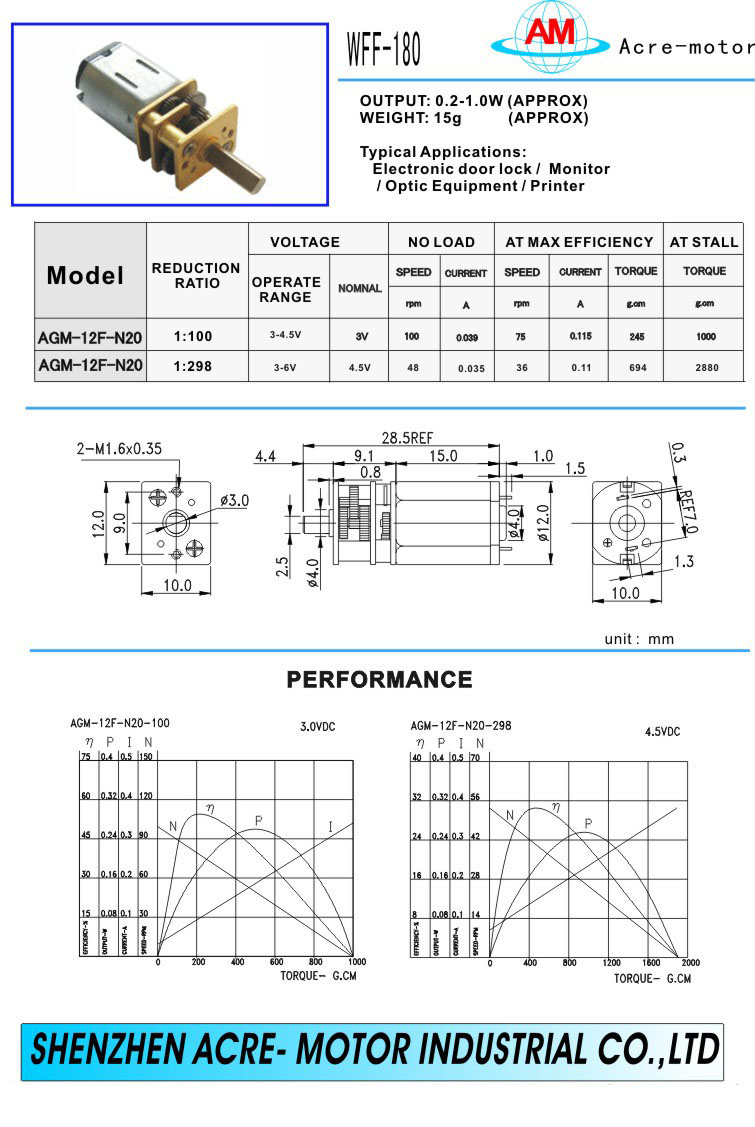

Spur gear motor AGM-12


Performance:



  • Spur-gear motor

  • Model : AGM-12

  • Output : 0.2-1W(Approx)

  • Weight : 15g (Approx)

  • Typical applications:

    • Electronic door lock

    • Monitor

    • Optic equipment

    • Printer

       Nominal  Voltage: 3VDC,4.5VDC

       Reduction ratio: 1:100,1:298

  • No load:

    • Speed: 100rpm,48rpm

    • Current: 0.039A, 0.035A

  • At maximum efficiency:

    • Speed: 75rpm,36rpm

    • Current: 0.115A, 0.11A

    • Torque: 245gcm/24mNm, 694gcm/68mNm

  • At stall:

    • Torque: 1000gcm/30mNm ,2880gcm/282mNm





next : 直齿轮电机 AGM-16
