Big DC motor
图文
详情

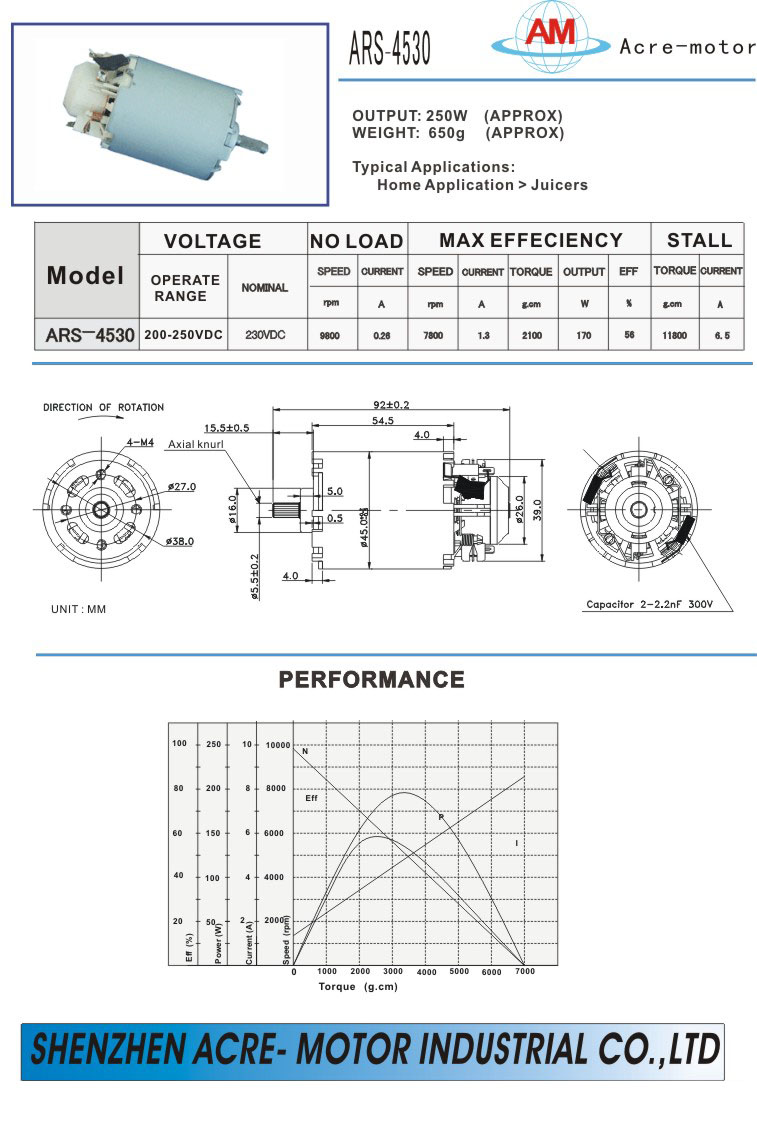

DC motor ARS-4530


  Performance:



  • Micro DC Motor

  • Model : ARS-4530

  • Output : 250W(Approx)

  • Weight : 650g (Approx)

  • Typical applications:

    • Home applications: Juicers

  • Voltage(DC):

    • Operating range: 200V to 250V

    • Nominal: 230V

  • No load:

    • Speed: 9800rpm

    • Current: 0.26A

  • At maximum efficiency:

    • Speed: 7800rpm

    • Current: 1.3A

    • Torque: 2100g.cm/1107.8mNm

    • Output: 170W

  • At stall:

    • Torque: 11300g.cm/10.5mNm

    • Current: 6.5A





next : 直流马达 ARS-4550
