Micro DC Motor
图文
详情

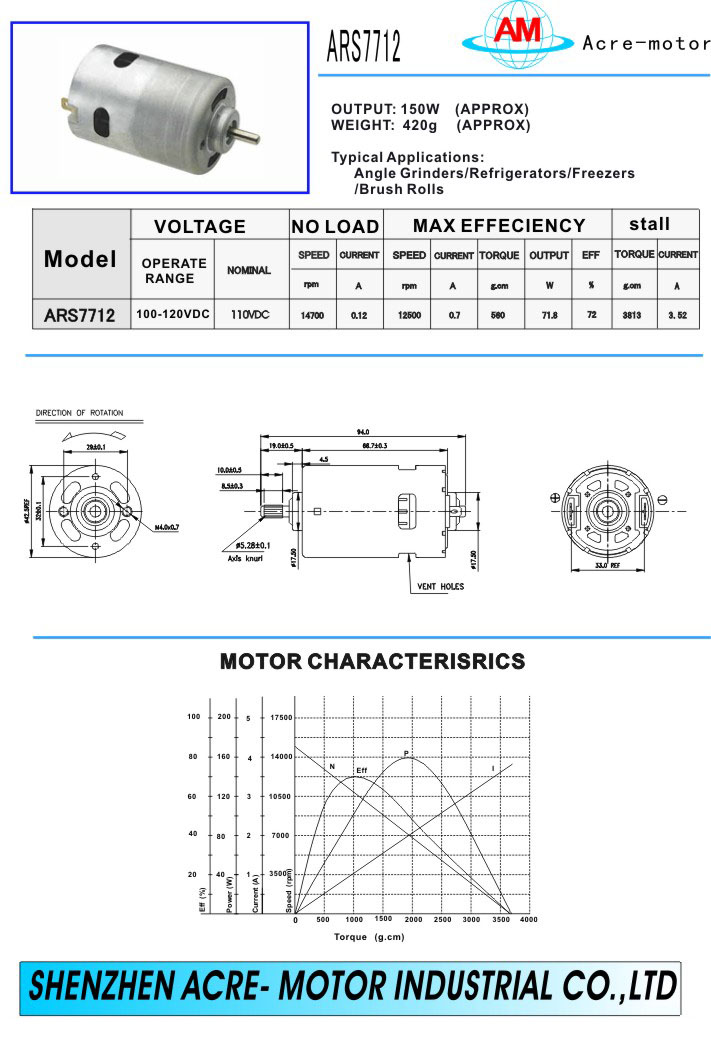

DC ARS-7712


Performance:



  • Micro DC Motor

  • Model : ARS-7712

  • Output : 150W(Approx)

  • Weight : 420g (Approx)

  • Typical applications:

    • Angle grinders

    • Refrigerators

    • Freezers

    • Brush rolls

  • Voltage(DC):

    • Operating range: 100V to 120V

    • Nominal: 110V

  • No load:

    • Speed: 14700rpm

    • Current: 0.12A

  • At maximum efficiency:

    • Speed: 12500rpm

    • Current: 0.7A

    • Torque: 580g.cm/56.8mNm

    • Output: 71.8W

  • At stall:

    • Torque: 3813g.cm/373.8mNm

    • Current: 3.52A





prev : 微型直流马达 ARS-755 next : 微型直流马达 ARS-987
