Micro DC Motor
图文
详情

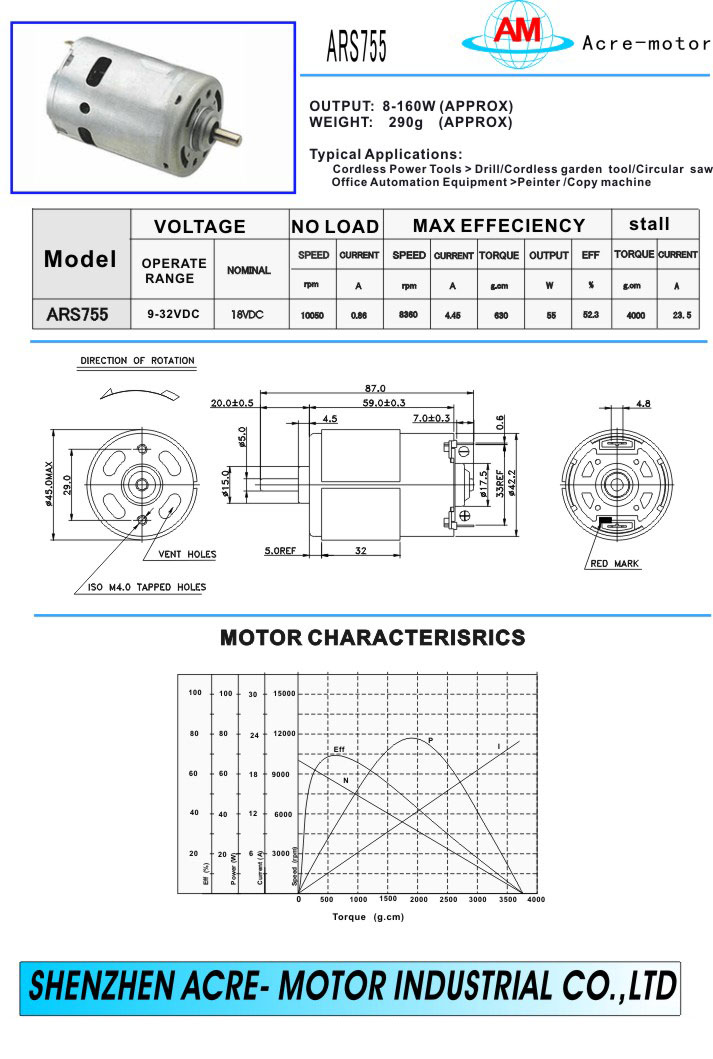

DC motor ARS-755


 Performance:



  • Micro DC Motor

  • Model : ARS-755

  • Output : 8.0-160W(Approx)

  • Weight : 290g (Approx)

  • Typical applications:

    • Cordless power tools: Drill/ Cordless garden tools/ Circular saw

    • Office automation equipment: Printer / Copy machine

  • Voltage(DC):

    • Operating range: 6.0 to 20V ,9V to 32V

    • Nominal: 18V, 18V

  • No load:

    • Speed: 19800rpm, 10050rpm

    • Current: 2.3A,  0.85A

  • At maximum efficiency:

    • Speed: 17300rpm, 8400rpm

    • Current: 16A, 4.45A

    • Torque: 1290g.cm/126mNm , 630gcm/61mNm

    • Output: 230W, 54W

  • At stall:

    • Torque: 10300g.cm/1010mNm ,3950g.cm/387mNm

    • Current: 112A,23.5A





prev : 微型直流马达 AFS-5512 next : 微型直流马达 ARS-7712
