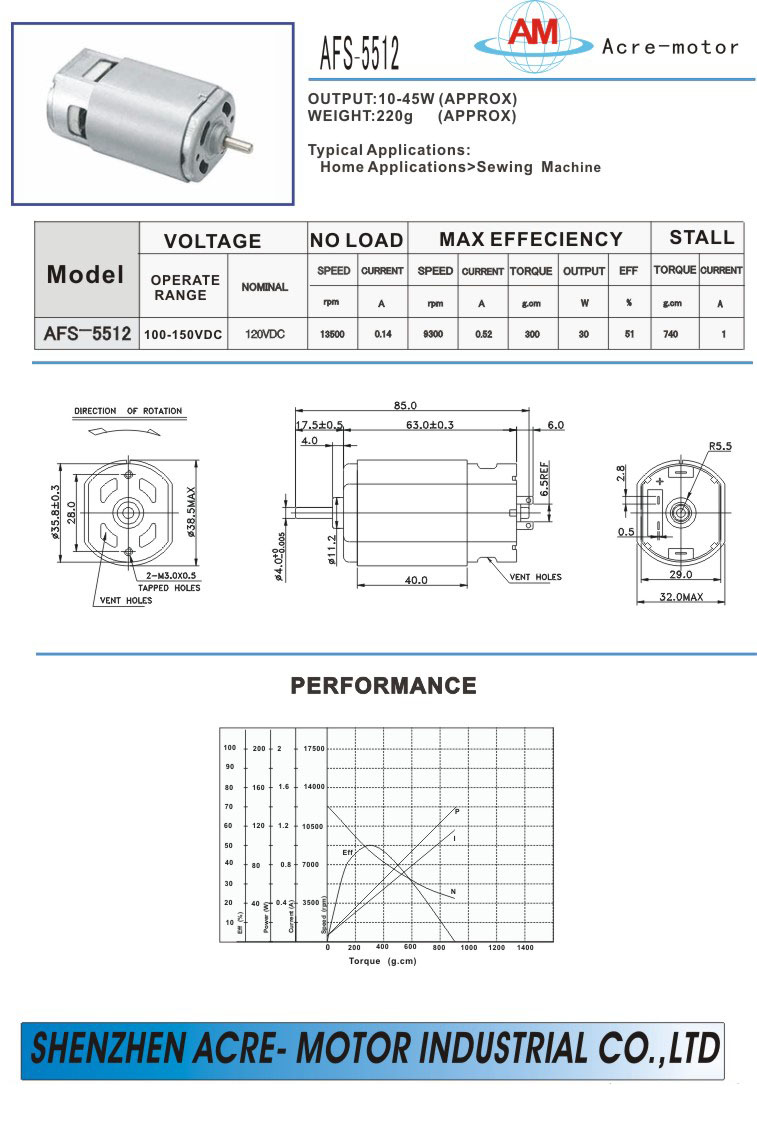

DC motor AFS-5512


 Performance:



  • Micro DC Motor

  • Model : AFS-5512

  • Output : 10-45W(Approx)

  • Weight : 220g (Approx)

  • Typical applications:

    • Home applications: sewing machine

  • Voltage(DC):

    • Operating range: 100-150V

    • Nominal: 120V

  • No load:

    • Speed: 13500rpm

    • Current: 0.14A

  • At maximum efficiency:

    • Speed: 9300rpm

    • Current: 0.52A

    • Torque: 300g.cm/30mNm

    • Output: 30W

  • At stall:

    • Torque: 740g.cm/73mNm

    • Current: 1A
