Micro DC Motor
图文
详情

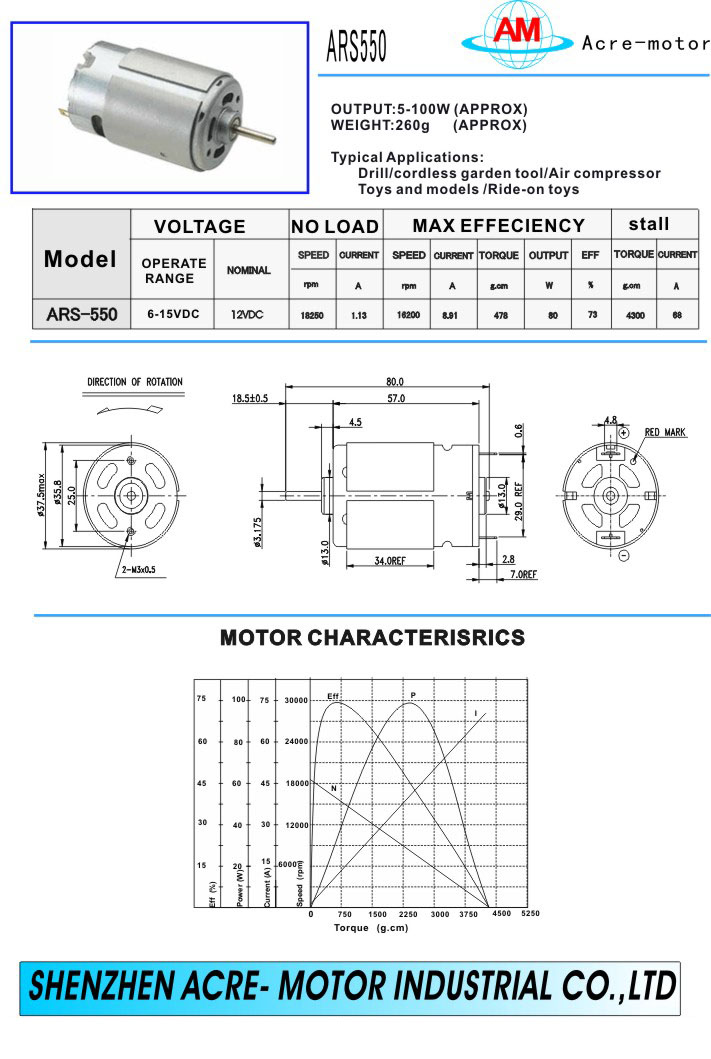

DC motor ARS-550


Performance:



  • Micro DC Motor

  • Model : ARS-550

  • Output : 5.0-100W(Approx)

  • Weight : 255g (Approx)

  • Typical applications:

    • Cordless power tools: Drill/ Cordless garden tools/ Air compressor

    • Toys & Models : Ride-on toys

  • Voltage(DC):

    • Operating range: 6.0to 14.4V

    • Nominal: 12V, 14.4V

  • No load:

    • Speed: 18200rpm, 19800rpm

    • Current: 1.15A,  1.3A

  • At maximum efficiency:

    • Speed: 16100rpm, 17600rpm

    • Current: 8.9A, 10.5A

    • Torque: 488g.cm/47.8mNm , 660gcm/64.7mNm

    • Output: 80.7W, 119W

  • At stall:

    • Torque: 4290g.cm/421mNm ,6000g.cm/590mNm

    • Current: 70A, 85A





prev : 直流电机ARF-370 next : 微型直流马达 AFS-5512
