Micro DC Motor
图文
详情

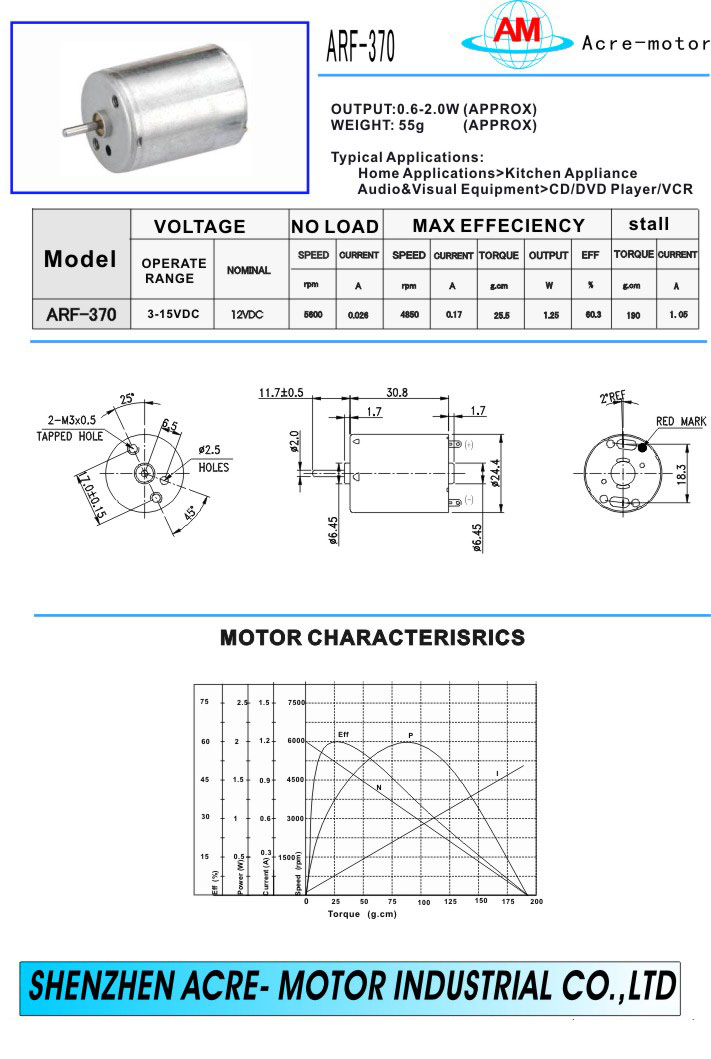

DC motor ARF-370


Performance:



  • Micro DC Motor

  • Model : ARF-370

  • Output : 0.6-2.0W(Approx)

  • Weight : 55g (Approx)

  • Typical applications:

    • Home applications: Kitchen applications

    • Audio & Visual equipment: CD/DVD player / VCR

  • Voltage(DC):

    • Operating range: 3-15V

    • Nominal: 12V

  • No load:

    • Speed: 5600rpm

    • Current: 0.026A

  • At maximum efficiency:

    • Speed: 4850rpm

    • Current: 0.17A

    • Torque: 25.5g.cm/2.5mNm

    • Output: 1.25W

  • At stall:

    • Torque: 180g.cm/18mNm

    • Current: 1.06A





prev : 微型直流马达 AFK-280 next : 微型直流马达 ARS-550
DC motor ARF-370
