Micro DC Motor
图文
详情

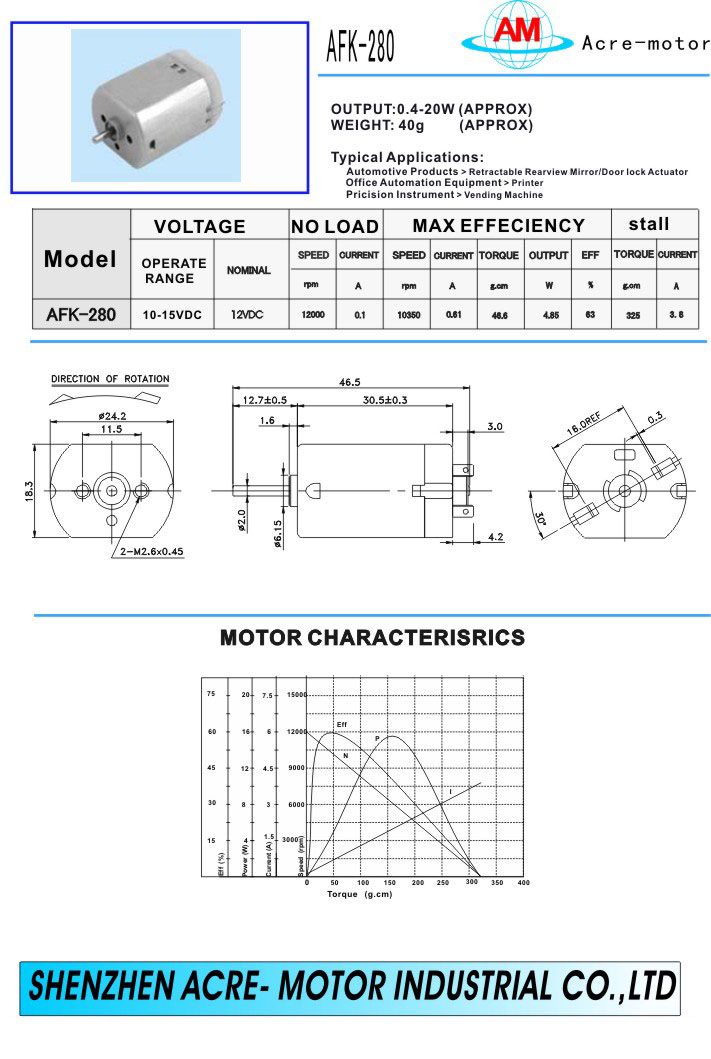

DC AFK-280


Performance:



  • Micro DC Motor

  • Model : AFK-280

  • Output : 0.4-20W(Approx)

  • Weight : 36g (Approx)

  • Typical applications:

    • Automotive products : Retractable rearview mirror/ Door lock actuator

    • Office automation equipment : Printer

    • Precision instrument: Vending machine

  • Voltage(DC):

    • Operating range: 10V to 15V

    • Nominal: 12V

  • No load:

    • Speed: 12000rpm, 10500rpm

    • Current: 0.1A,  0.09A

  • At maximum efficiency:

    • Speed: 10350rpm, 9000rpm

    • Current: 0.62A, 0.54A

    • Torque: 45.4g.cm/4.45mNm , 42gcm/4.12mNm

    • Output: 4.81W, 3.88W

  • At stall:

    • Torque: 325g.cm/32mNm ,295g.cm/128.9mNm

    • Current: 3.8A, 3.25A
