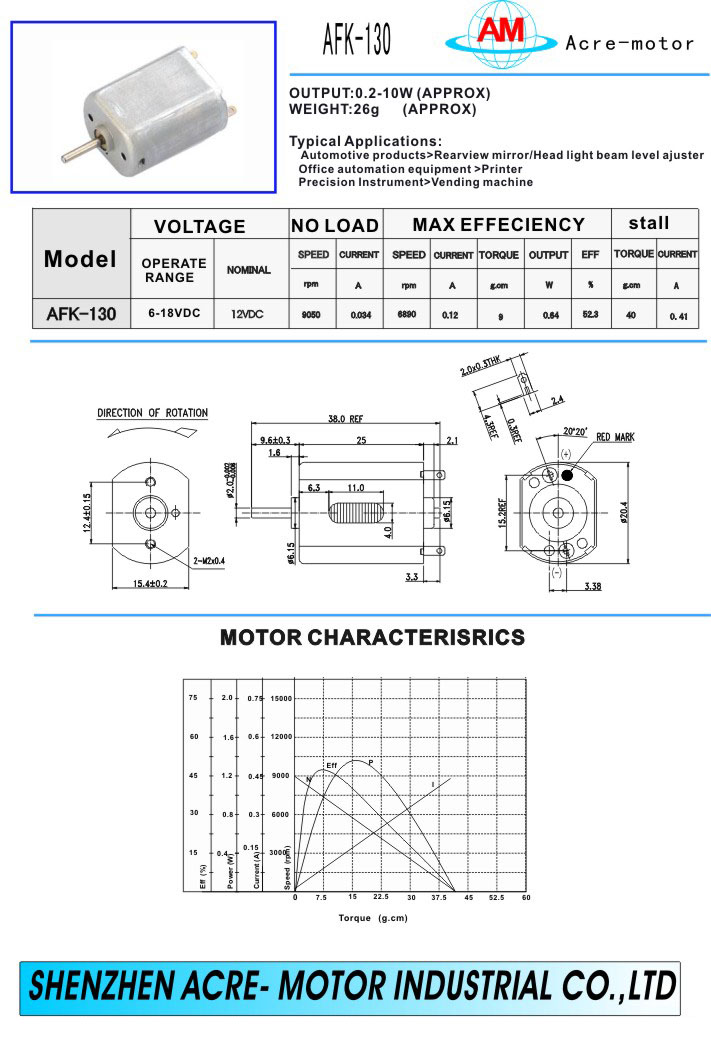

DC motor AFK-130


 Performance:



  • Micro DC Motor

  • Model : AFK-130

  • Output : 0.2-10W(Approx)

  • Weight : 26g (Approx)

  • Typical applications:

    • Automotive products : Rearview mirror/ Head light beam level adjuster

    • Office automation equipment : Printer

    • Precision instrument: Vending machine

  • Voltage(DC):

    • Operating range: 9-18V , 4-12V

    • Nominal: 12V

  • No load:

    • Speed: 9000rpm, 18000rpm

    • Current: 0.034A,  0.13A

  • At maximum efficiency:

    • Speed: 6990rpm, 14900rpm

    • Current: 0.16A, 0.14A

    • Torque: 2.1g.cm/0.21mNm , 2.6gcm/0.26mNm

    • Output: 0.2W, 0.5W

  • At stall:

    • Torque: 140g.cm/3.92mNm ,140g.cm/13.7mNm

    • Current: 0.41A, 3A
