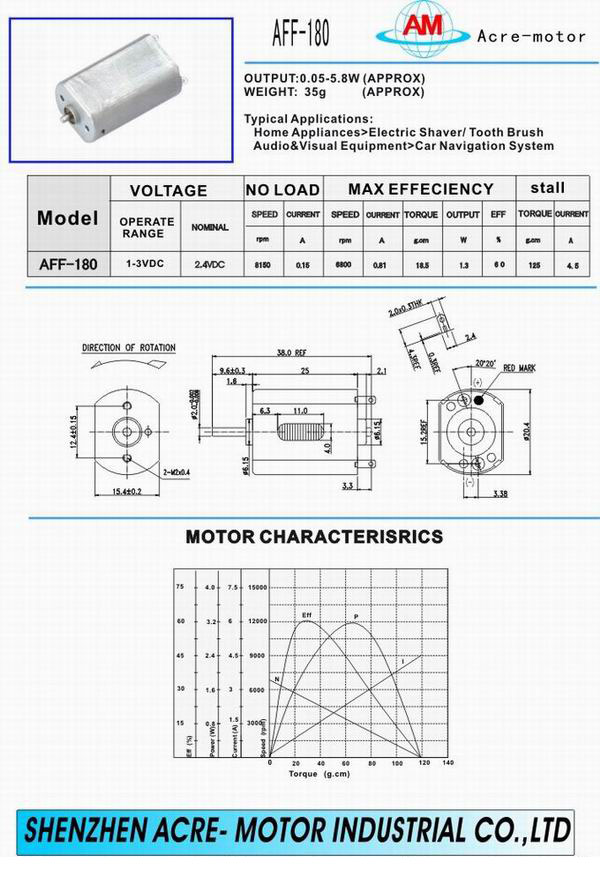

DC motor AFF-180


 Performance:



  • Micro DC Motor

  • Model : AFF-180

  • Output : 0.05-5.6W(Approx)

  • Weight : 35g (Approx)

  • Typical applications:

    • Home applications: Electric shavers / Tooth brush

    • Audio and Visual equipment: Car navigation system

  • Voltage(DC):

    • Operating range: 1 to 3V

    • Nominal: 1.2V, 2.4V

  • No load:

    • Speed: 9400rpm, 8150rpm

    • Current: 0.4A,  0.15A

  • At maximum efficiency:

    • Speed: 7850rpm, 6850rpm

    • Current: 1.99A, 0.82A

    • Torque: 17.9g.cm/1.76mNm , 18.2gcm/1.82mNm

    • Output: 1.44W, 1.3W

  • At stall:

    • Torque: 107g.cm/10.5mNm ,120g.cm/11.8mNm

    • Current: 9.9A, 4.5A
