Synchronous motor
图文
详情

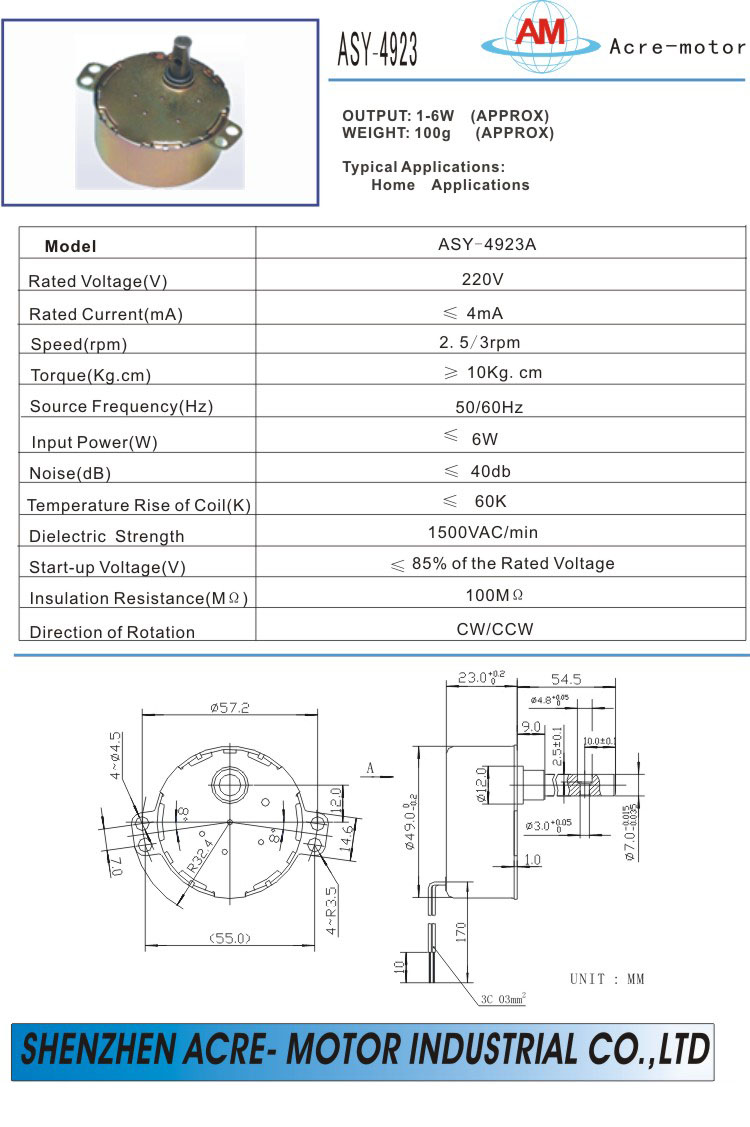

Synchronous motor ASY-4923


Performance:



  • Synchronous motor

  • Model : ASY-4923

  • Output :1-6W (Approx)

  • Weight : 100g (Approx)

  • Typical applications:

    • Home Applications

  • Rated  voltage: 220V

  • Rated current : 4mA

  • Speed : 2.5/3rpm

  • Torque : ≥10Kgcm

  • Source frequency :50/60Hz

  • Input power : ≤ 6W

  • Noise : ≤ 40db

  • Temperature rise of coil : ≤ 60K

  • Dielectric of strength : 1500VAC/min

  • Start-up voltage : ≤85% of the rated voltage

  • Insulation of the resistance : 100MΩ

Direction of rotation : CW/CCW
