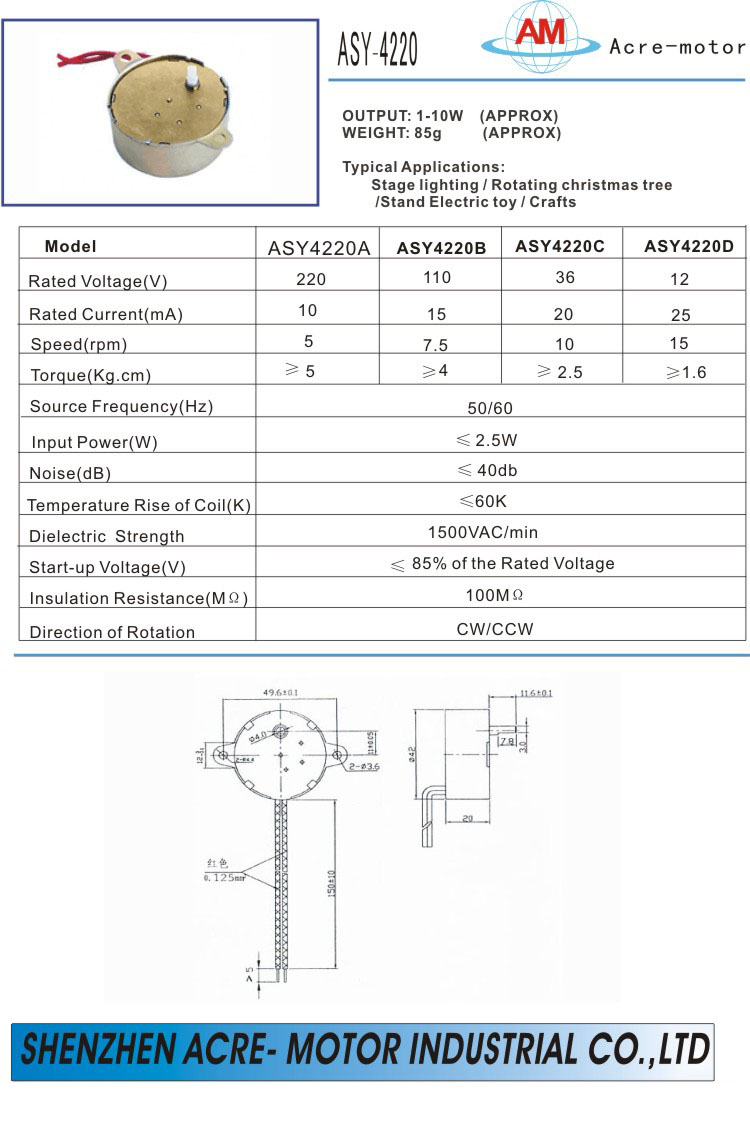

Synchronous motor Model : ASY-4220 Output :1-10W (Approx) Weight : 85g (Approx) Typical applications: Stage lighting Rotating christmas tree Stand electic toy Crafts
Rated voltage: 220V , 110V, 36V, 12V Rated current : 10mA,15mA, 20mA, 25mA Speed : 5rpm ,7.5rpm, 10rpm ,15rpm Torque : ≥5Kgcm, ≥4Kgcm, ≥2.5Kgcm, ≥1.6Kgcm Source frequency :50/60Hz Input power : ≤ 2.5W Noise : ≤ 40db Temperature rise of coil : ≤ 60K Dielectric of strength : 1500VAC/min Start-up voltage : ≤85% of the rated voltage Insulation of the resistance : 100MΩ
Direction of rotation : CW/CCW |
|
|
|
