Synchronous motor
图文
详情

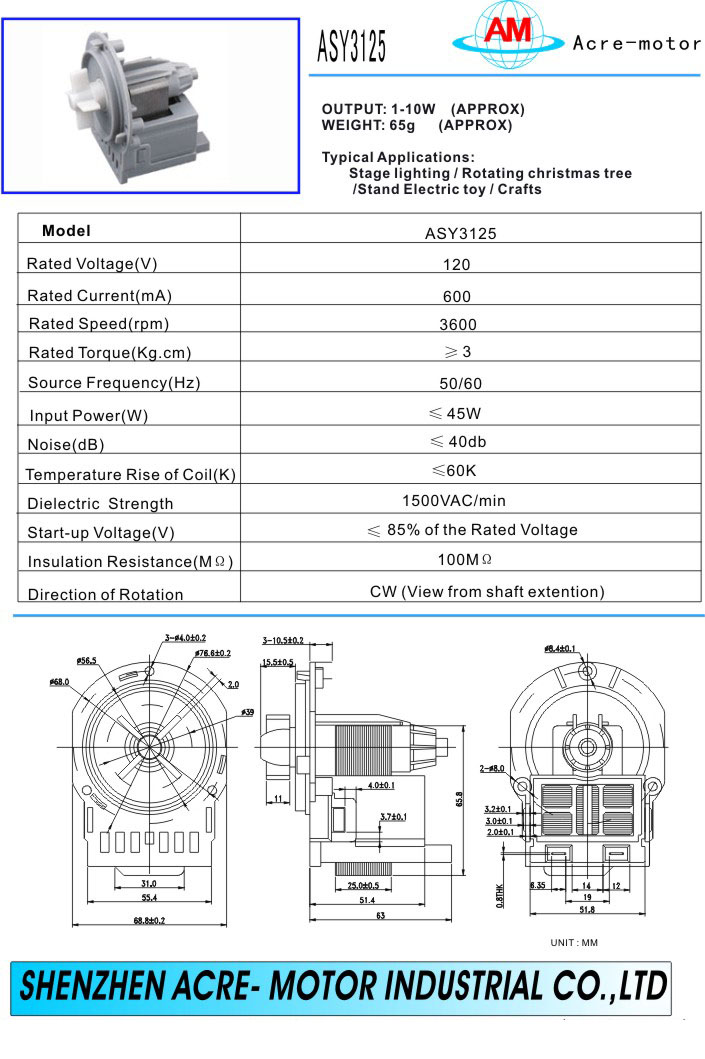

Synchronous motor ASY-3125


 Performance:



  • Synchronous motor

  • Model : ASY-3125

  • Output :1-10W (Approx)

  • Weight : 65g (Approx)

  • Typical applications:

    • Stage lighting

    • Rotating christmas tree

    • Stand electic toy

    • Crafts

  • Rated  voltage: 120V

  • Rated current : 600mA

  • Speed : 3600rpm

  • Torque : ≥3Kgcm

  • Source frequency :50/60Hz

  • Input power : ≤ 45W

  • Noise : ≤ 40db

  • Temperature rise of coil : ≤ 60K

  • Dielectric of strength : 1500VAC/min

  • Start-up voltage : ≤85% of the rated voltage

  • Insulation of the resistance : 100MΩ

Direction of rotation : CW/CCW
